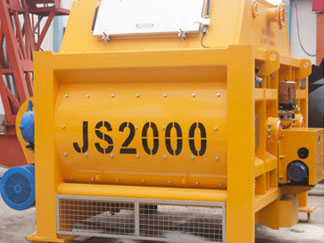

JS2000 sicoma mini concrete mixer
  • Condition:New
  • Delivery port:Qingdao or Tianjin port, China
  • Payment term:L/C, T/T
  • Guarantee period:12 months
  • Delivery time:10-15 days after received deposit
  • Installation time:20days
We're here to help: (※ Click this button to inquiry)Easy ways to get the answers you need.

JS2000 concrete mixer is suitable for all kinds of prefabricated components factory and highway, bridge, water conservancy, port, wharf and other industrial and civil construction projects, able to stir dry concrete, plastic concrete, mobile concrete, lightweight aggregate concrete and all kinds of mortar. JS2000 concrete mixer in addition to stand-alone use, usually and PLS3200 ingredients and other equipment into a mixing station to use.

JS2000 concrete mixer has the following characteristics:

1. Advanced technology

Mixing tube arc part is welded, mixing cylinder inlaid with five kinds of liner, are countersunk head screws with the cylinder fastening.

2. Sealing is good

In order to ensure the quality of the seal, in the end of the mixing cylinder with a special oil supply device.

3. Strong mixing

Reducer two output shafts through two pairs of open gears were driven by two horizontal configuration of the mixing shaft reverse isokinetic maneuver.

4. Easy to operate

Electrical control system all imported first-class international components, full-featured, reliable performance, easy to use.

Operating principle

JS2000 concrete mixer is by feeding, mixing, discharge, water supply, electrical and other components.

1. JS2000 concrete Mixer Mixing System

The four observation covers on the mixing cylinder are pushed out 90 ° apart.

2. JS2000 concrete mixer feeding system

The feeding system consists of hoisting mechanism, feeding frame, hopper, feeding mouth and so on.

When the climbing to a certain height, the hopper on the bottom of the Doumen on a pair of rollers into the rack on the water track, the Doumen open automatically, the door to the hopper to the hopper, Material into the mixing tube through the feed nozzle.

Brake motor can ensure that the hopper is running at full capacity to the possibility of stopping at any position, the size of the braking torque from the rear seat of the motor to adjust the large nut.(concrete mixer for sale)

JS2000 concrete mixer water system

Water supply system consists of water pump, throttle valve, cleaning device, spray device.

Throttle valve through the cylinder can be adjusted to regulate the flow of water, surface water supply by the total adjustment.(sicoma mini mixer concrete)

4. JS2000 concrete mixer discharge system

Discharging system consists of unloading six, air pump, valve, sub valve, cylinder, electrical and other institutions. Discharge door installed in the bottom of the mixer, through the cylinder, to achieve pneumatic discharge. As well as the discharge door opening and closing position, by adjusting the position of the seal can guarantee discharge door seal. JS2000 unloading manual lever is for temporary power failure emergency discharge and cylinder failure when unloading purposes, usually should be removed to prevent injury.(diesel concrete mixer)

5. JS2000 concrete mixer electrical system

Electrical control circuit with air switches, fuses, thermal relays, with short circuit protection, overload protection function. All controls(mixer cement loading self)

Button and air switch handle and indicator are arranged in the distribution box door, and has a door lock. The outside of the button is provided with a protective cover.

The electrical components in the distribution box are installed on an insulating board, which is safe and reliable, and easy to operate and maintain.(mobile mixed concrete machine)

Electrical control power supply is 380V three-phase four-wire power supply, the voltage tolerance is ± 10%, otherwise prohibited to use. If the user-owned

Electric power, capacity should be ?R 100KVa. Motor surface temperature ?Q 60 ??, live part of the shell insulation ?R 0.5MΩ.
