50m3/h concrete batching plant
  • Condition:New
  • Delivery port:Qingdao or Tianjin port, China
  • Payment term:L/C, T/T
  • Guarantee period:12 months
  • Delivery time:10-15 days after received deposit
  • Installation time:20days
We're here to help: (※ Click this button to inquiry)Easy ways to get the answers you need.

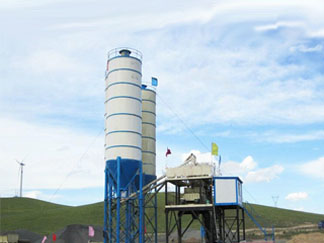

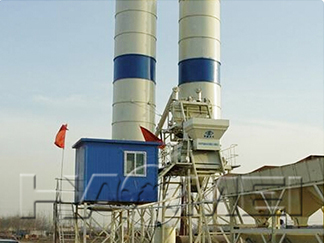

The 50m3/h concrete batching plant produced by Haomei Construction Machinery is a small-scale concrete mixing plant equipment. It is composed of semi-automatic concrete mixing equipment for feeding, mixing, electric control and steel structure parts. It is suitable for small-scale construction sites, prefabricated parts Plant and commercial concrete production plant.

1. Aggregate batching system

50 mixing station using PLD1600 concrete batching machine, the machine from the feeding mechanism, weighing systems, electrical control systems and other components. Characterized by the feeding mechanism for the "goods" shaped arrangement, the belt feeding, weighing for the lever plus a single sensor, measurement accuracy.(concrete batch mixer)

2. Aggregate conveying system

The station aggregate conveying system using hopper feeding mode, the biggest advantage is the small occupation of space, saving land resources.

3, the mixing system

The station mixer using 1000 pairs of horizontal shaft forced mixer, you can mix liquidity, dry hard, lightweight aggregate concrete and various types of mortar. The mixer structure is reasonable, mixing quality is good, mixing time is short, energy saving and low noise.

4.Electric control system

The main features of electronic control system: stable operation, reliable performance; core components of electrical components used in France Schneider companies and other world famous brand products, quality guaranteed; computer automatically on the whole process of management. Also equipped with a complete printing system and advanced TV monitoring system, aggregate ingredients, host concrete discharge and other important systems real-time monitoring, and lighting systems and communication systems, so that a full set of equipment features more complete.

5. measurement system

The station metering system consists of a cement scale, a water balance, an admixture scale composition. The main role for the completion of cement, water, admixture of several materials such as batching process.

6. Screw conveyor(mixer plant parts)

LSY series of screw conveyor is in a closed cylindrical section of the shell using the rotating body of continuous conveying of materials. The device to take the initiative of the patented universal feed inlet, so that installation is more convenient.

Cement silos(cement silo batching plant)

Cement storage is a container for bulk cement. By the cylinder, Bijia, into the ash tube, precipitator, level gauge, discharge doors and other components.
