yhzs50 mobile concrete batching plant
  • Condition:New
  • Delivery port:Qingdao or Tianjin port, China
  • Payment term:L/C, T/T
  • Guarantee period:12 months
  • Delivery time:10-15 days after received deposit
  • Installation time:20days
We're here to help: (※ Click this button to inquiry)Easy ways to get the answers you need.

????The YHZS50 mobile concrete batching plant has a novel and unique structure, compact and simple. A pallet unit integrates multiple operations such as collecting, weighing, conveying, and mixing. The main machine adopts a compulsory twin-shaft mixer, which has the characteristics of short mixing time, rapid unloading, uniform mixing, high weighing accuracy, etc. It can mix various concretes such as plasticity and dry hardness. Aggregate is cumulatively metered by electronic scales or individually metered. Cement, water, and additives are all metered in a weighing hopper. The metering is accurate, and it is controlled by a microcomputer. The operation is simple, easy to adjust, and reliable. The aggregate is conveyed and fed by belts. The electrical components are selected from Siemens, with reliable performance and low power, which are suitable for large quantities of concrete on site.

????The wear-resistant materials for the mixer lining and the mixing blade are specially treated, and the unique shaft end support and sealing type greatly improve the service life of the main machine. The station has complete functions, complete batching, mixing, metering, and control systems. It covers a small area and is cost-effective. It is suitable for small and medium-sized hydropower, highways, ports, airports, bridges and other liquid projects.


Model Capacity
(m3/h)
Mixer Batcher Conveyor
(t/h)
Trailer speed
??km/h??
Wheel distance??outside??
??mm??
Turning radius
??mm??
Power
(kW)
Discharging height
(m)
YHZS50 50m³/h JS1000 PLD1600 400 15 3400 15 60 4.0

????Main configuration of yhzs50 mobile concrete batching plant

????Concrete mixer

????JS1000 twin-shaft concrete mixer, the mixing system is composed of belt pulley, reducer, open gear, electric motor, mixing drum mixing device and oil supply device. There is a special sealing device at the joint of the mixing shaft and the two ends of the mixing drum. In order to ensure the sealing quality, a special oil supply device is installed on the end surface of the mixing drum.

????The mixing system of MPC1000 vertical shaft planetary mixer is composed of: the mixing arm and its blades make planetary motion, the mixing track is continuous, the mixing motion is intense, and the homogeneity is good; the angle of the mixing blade is reasonable, the production efficiency is high, and the wear of the lining and the blade is reduced; The board cleans the bottom material, and the side scraper cleans the side material, with automatic cleaning function.

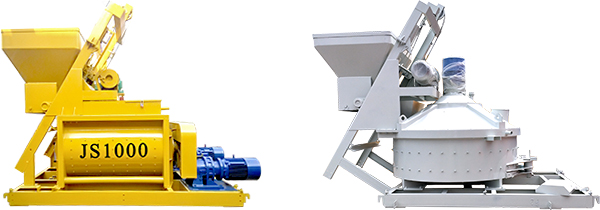

JS and planeryconcrete mixers

????Concrete batching machine

????The yhzs50 mobile concrete batching plant uses the PLD1600 concrete batching machine, which is divided into two-bin batching machine and three-bin batching machine, which can effectively ensure the batching accuracy and improve the productivity. The mechanism is simple, reliable in use, and convenient in operation and maintenance. Because the measurement is accurate, it can effectively guarantee the quality of fly ash or sand lime brick.
????Cement Silos

????The cement silo for yhzs50 mobile concrete mixing plants is divided into three types: flake cement silo, integral cement silo, and horizontal cement silo. The upper and lower parts of the cement silo are equipped with level gauges and dust removal systems; to prevent the powder from arching, a blower is installed at the cone of the silo Arch breaking device; it can be designed as a sheet cement silo, which is convenient to transport and easy to use.

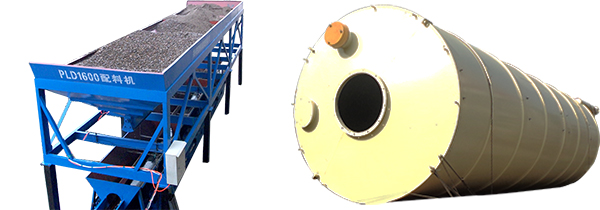

batching machine and cement silo

????Conveyor System

????The aggregate conveying system of yhzs50 mobile concrete batching plant adopts the lifting bucket feeding method, which has the advantage of occupying a small space and saving land resources. Belt conveyor is an ideal high-efficiency continuous transportation equipment. It has the advantages of long transportation distance, large transportation volume, continuous transportation, etc. It is easy to realize automation and centralized control, and it is very convenient to disassemble and assemble.

????Control System

????The center of the yhzs50 mobile concrete mixing plant is the control system. The whole machine adopts computer control, which can be controlled automatically or manually. The operation is simple and easy to master. Dynamic panel display, can clearly understand the operation of each component, and can store and print report data at the same time.

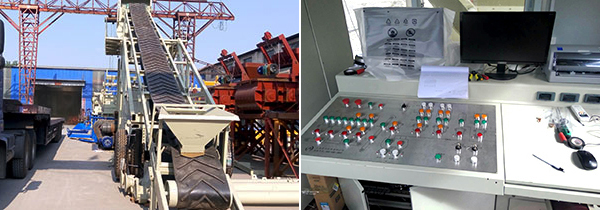

belt conveyor and control room
