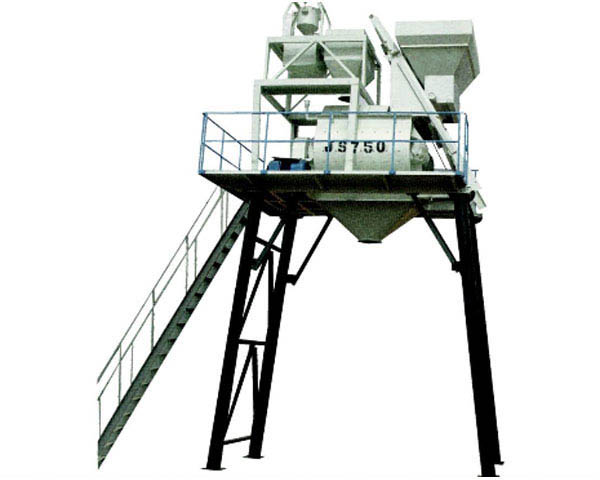

JS500 concrete mixer and JS750 concrete mixer can be used alone, can also be used as a small concrete batching plant mixing host.
JS500 JS750 concrete mixer parameter comparison instructions:

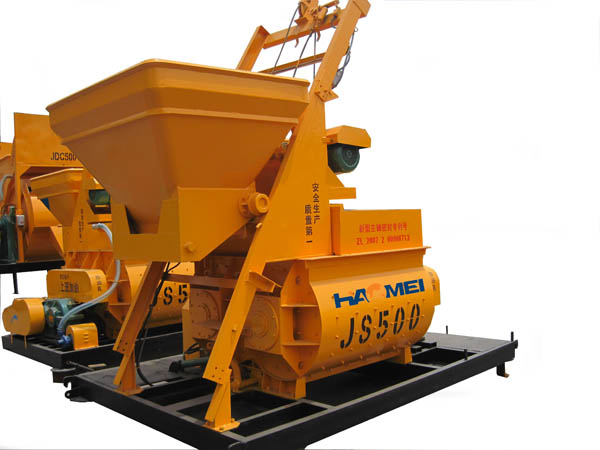

JS500 concrete mixer parameter instructions
| Specification | Unit | Value |
| Discharging Volume | L | 500 |
| Charging Volume | L | 800 |
| Mixer Capacity | m3 | 0.5 |
| Lubrication System | Brand | Choosed |
| Reducer | Brand | Choosed |
| Aggregate Size | mm | 60/80 |
| Aggregate Compartments | Quantity | 4 |
| Working Circle | S | 60S |
| Mixer Motor Power | KW | 18.5 |
| Mixing Speed | r/min | 35 |
| Mixing Blade | Quantity | 2x7 |
| Lifting Motor Power | KW | 5.5 |
| Pump Motor Power | KW | 0.75 |
| Weight | KG | 1500 |
| Dimensions | mm | 3030x2300x2680 |
| Specification | Unit | Value |
| Discharging Volume | L | 750 |
| Charging Volume | L | 1200 |
| Mixer Capacity | m3 | 0.75 |
| Lubrication System | Brand | Choosed |
| Reducer | Brand | Choosed |
| Aggregate Size | mm | 60/80 |
| Aggregate Compartments | Quantity | 4 |
| Working Circle | S | 60S |
| Mixer Motor Power | KW | 30 |
| Mixing Speed | r/min | 30.5 |
| Mixing Blade | Quantity | 2x8 |
| Lifting Motor Power | KW | 7.5 |
| Pump Motor Power | KW | 1.1 |
| Weight | KG | 6150 |
| Dimensions | mm | 4550x2250x2450 |
